Particle counter allows analysis of dark fluids

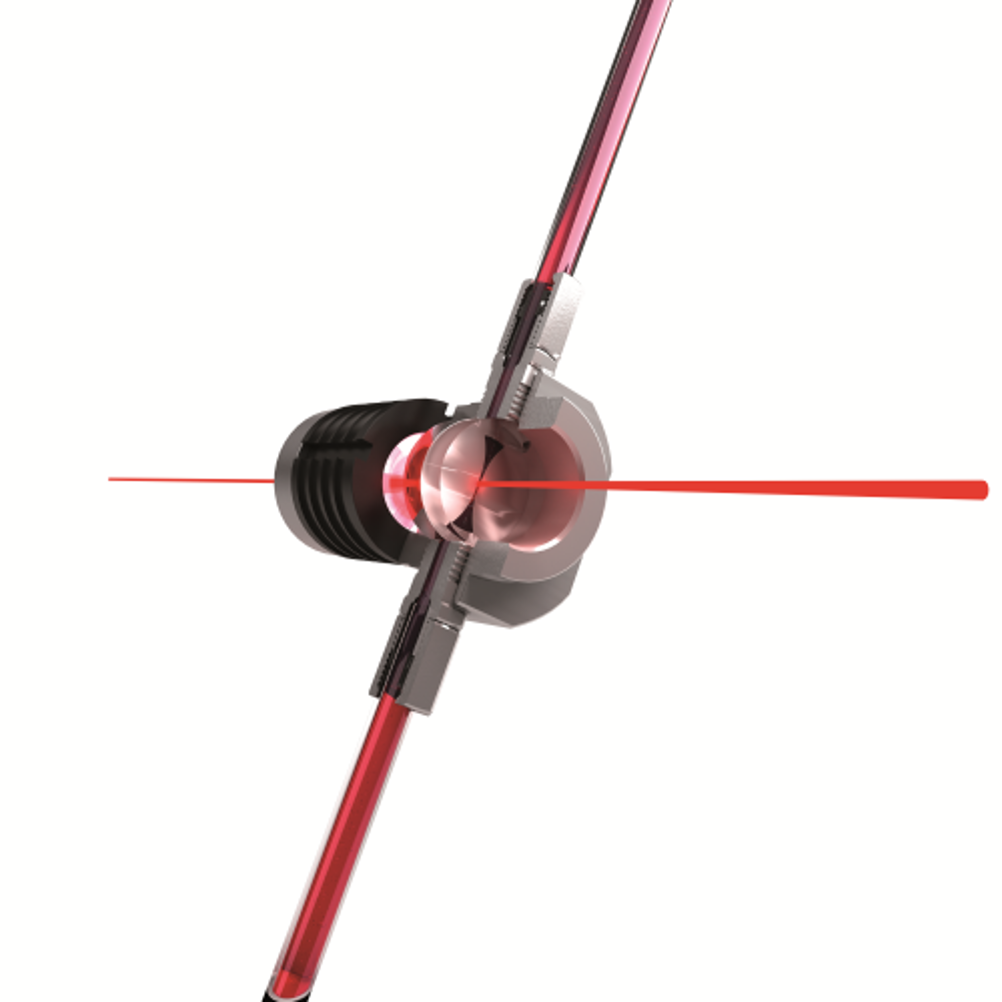

The Pamas simplified sensor measuring cell.
The Pamas simplified sensor measuring cell.

The S50DP has an integrated dilution system which allows analysis of dark fluids, highly contaminated liquids and samples containing undissolved additives.

Dilution involves adding a programmable amount of solvent to the difficult sample. The system’s inner structural design ensures the solvent and sample fluid are thoroughly mixed aiding accurate, repeatable measuring results.

Equipped with a wear resistant ceramic piston pump which provides a constant flow rate of 25 ml/min at a pressure range from 0 to 6 bar, the S50DP has eight different size channels. Particles in eight size classes are counted from > 4 µm(c), to > 70 µm(c).

The integrated Pamas HX particle sensor is calibrated in compliance with the ISO 11171 standard and measures sample fluids with a maximum concentration of up to 24,000 particles per milliliter at a coincidence quote of 7.8%.

The S50DP will on display at the Hannover Messe trade fair in Germany from April 13-17.
