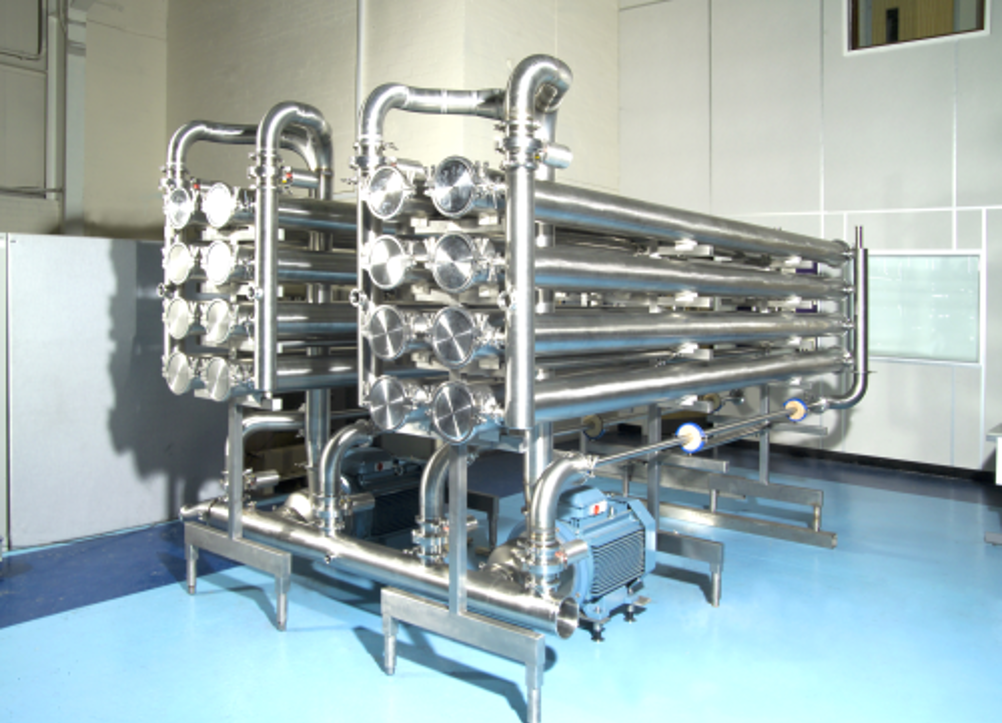

The standard range of housings available span diameters of 2.5”, 3.8”, 4.0”, 4.2”, 6.3”, 8.0”, 8.3” with lengths to accommodate a single element up to 6 elements in series (S1 to S6). Standard housing designs include 2, 3 or 4 port options with top, bottom and side port or end port configurations. Housing connections include tri-clamp ferrule, flanged, threaded, and grooved ends for Victaulic® couplings. Axium’s membrane housings can be manufactured for a wide range of operating pressures, typically 6 bar to 64 bar that cover all aspects of Microfiltration, Ultrafiltration, Nanofiltration and Reverse Osmosis. Manufactured from the highest quality materials, with 316L (1.4404) stainless steel being the industry standard, housings can be provided with hydrostatic pressure test certification and material certification to BS EN 10204 3.1 for every fabrication. Surface finish testing, surface passivation and TSE-free certification are also available on request.
