ECD develops new drinking and wastewater sensors

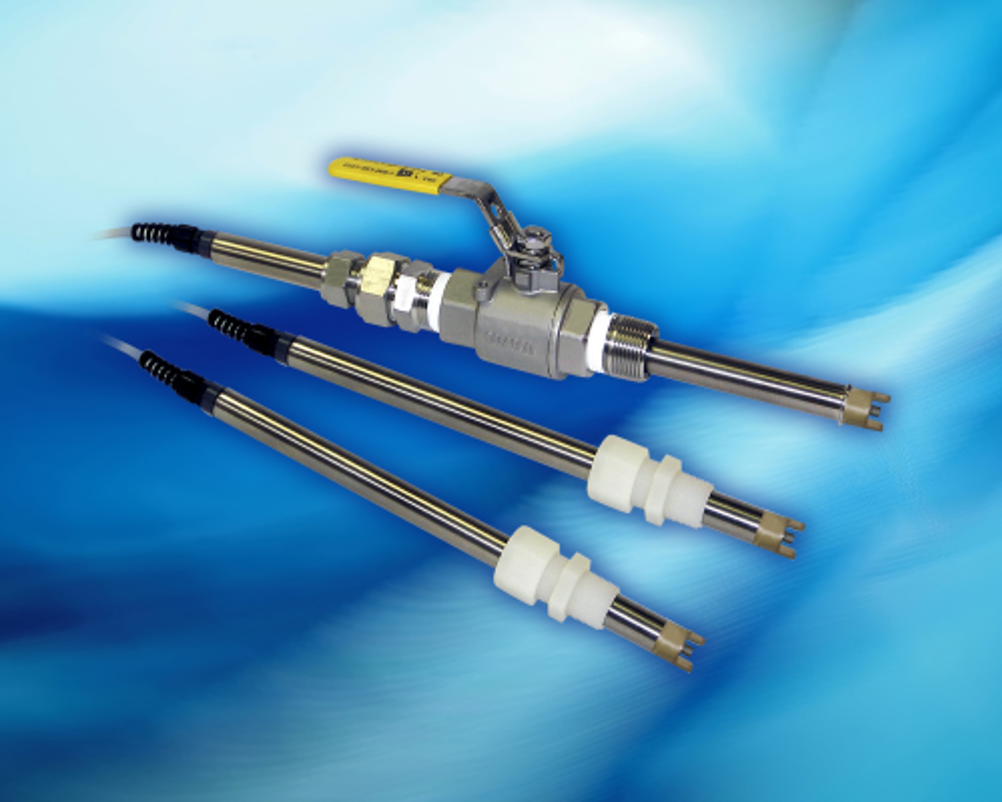

The new line of ammonium pIon sensors for drinking water and wastewater from Electro-Chemical Devices.
The new line of ammonium pIon sensors for drinking water and wastewater from Electro-Chemical Devices.

Ammonium concentration is a commonly measured parameter in environmental water, potable water and wastewater. The MVS10 and MVS17 pIon electrode cartridges measures the activity of ‘free’ ammonium ions in solution in concentrations from 0.1 to 14,000 ppm over a pH range from 2-8 pH (2-10.5 pH with pH compensation). The sensors also feature temperature and pressure specifications, operating over a wide temperature range of 0-40°C (32-104°F) and at a pressure range of 0-50 psig (0-3.5 bar).

The MVS10 sensor is an insertion or immersion-style sensor for use in pipe tees or on the end of a stand pipe for immersion into a tank or pond, while the MVS17 is a valve-retractable design that allows for insertion or removal of the sensor into a pipe without interrupting the process flow. They are fully re-buildable and feature a 316 stainless steel body as standard with the option of making it out of titanium, grade 2, Hastelloy C22 or Kynar, PVDF body depending on the applications and operating environments.

In addition to ammonium, ECD’s MVS10 and MVS17 sensors are available in models measuring pH, ORP, dissolved oxygen, conductivity, resistivity and other specific ions including bromide, calcium, chloride, copper, cyanide, fluoride, potassium, sodium and sulphide. All cartridge varieties offer built-in signal conditioning and optionally feature ECD’s SENTINEL PrepHault sensor life indicator.

The MVS10 and MVS17 sensors can be used with the T23, 4-20 mA transmitter or integrated with ECD’s C22 Analyzer featuring dual channel capabilities for pH compensation or two channels of ammonium measurement. The C22 analyser features ECD's multi-bus architecture, enabling the customisation of up to four inputs and six outputs in a convenient 1/2 DIN NEMA 4X enclosure.

The MVS10 sensor is designed with a 0.75-inch MNPT compression fitting as the process connection, allowing a variable insertion length to accommodate installation in pipe tees, flow cells or through tank walls. If the trunk fitting is reversed, the sensor can be installed in a pipe for submersion in a tank.

The MVS17 Sensor is designed with a 1 inch MNPT ball valve, a 1-×-0.75 inch reducer and a 0.75 inch MNPT compression fitting to provide the process connection. Loosening the compression fitting allows the sensor to side freely through the ball valve for insertion either into the process or retraction from the process. Once the sensor is retracted, the ball valve can be closed and the sensor can be removed for maintenance or replacement without shutting down the process line.
