The result of this refresh is the HRS+, HRS-L+ and HRE+ product line-up, each available in an extensive range of flow capacities to offer the most efficient match with production facilities.
As a provider of heat regenerative adsorption dryers with the HRS, HRE, HRS-L for the past 30 years, the company recognised the latest developments customers would require.
“Over the last few years we’ve looked closely at the options that customers invariably add to their order – typically those that supported the requirements for energy-efficient operation – and incorporated them into our standard offering,” explained Wolfgang Bongartz, Industrial Gases Product Manager at Donaldson . “Of course, now there is also a strong demand for connectivity, data transfer and condition monitoring options, so each unit is provided ready for the customer to choose the exact technologies most suitable for their operation.”
As the most energy-efficient design due to the use of ambient air for desorption and cooling, the 16 models of the HRS+ range are most suitable for operations in more temperate climates. Boasting low operating costs, they use a novel yet proven special desiccant layer to dry the incoming compressed air, while relying on externally heated blower air to aid desorption in the counter-current flow. Should unexpected compressed air or ambient temperature conditions arise, a purge-cooling program can be activated to reduce the dewpoint using compressed air.
Purge cooling is also a feature of the 16-model HRE+ range, which uses both externally heated blower air and 1-2% of the incoming compressed air flow to achieve extremely low dew points, even in tropical climates. Where high ambient temperatures and humidity do not allow for cooling with fresh air, the 12 HRS-L+ models solve the problem by using a water-cooled heat exchanger to cool the air stream heated by the desiccant. When this cooling water is no longer needed, a shut-off valve enables significant savings in water and energy to be achieved. Based on the standard HRS+ range, this closed-loop, zero-purge design can achieve a pressure dew point as low as -70°C, making it ideal for worldwide use.

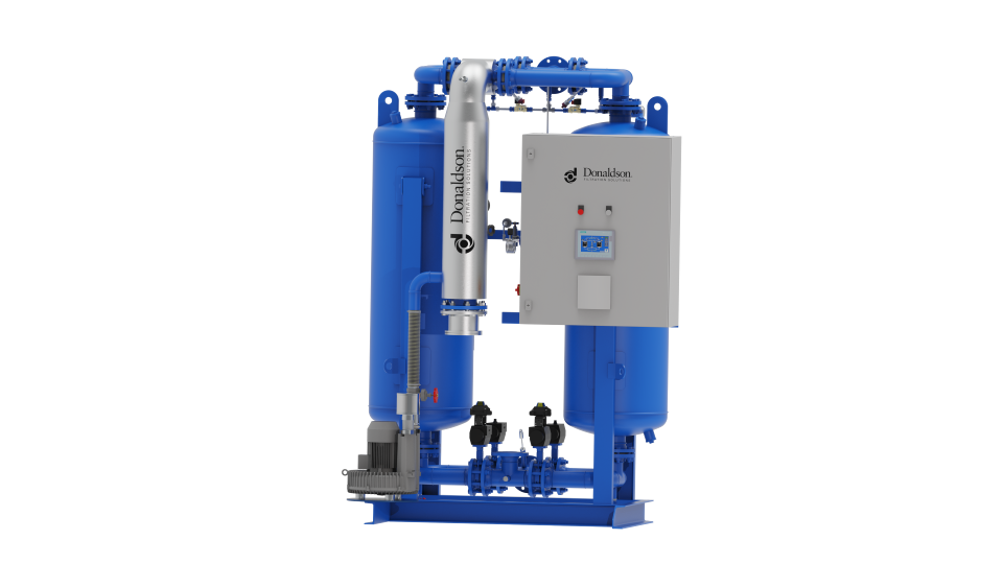

The Ultradryer HRS+ models are an energy efficient drying solution, providing low operating costs as well as easy maintenance.
With all models now featuring Ultraconomy Dewpoint Control as standard, major energy savings can be achieved by the adsorption cycle time adjusting to current operating conditions, with regeneration only occurring once the desiccant has been fully utilized. ENERSAVE versions of the HRS+ and HRE+ are optionally available for even lower energy consumption.
The new range of available options now includes two levels of advanced heat insulation, differential pressure monitoring to predict upcoming maintenance while assessing filter and desiccant condition, and flow monitoring with current data indicated on the HMI and long-term data available in graph form. Two new energy management programs are also optional, and a ‘Weekend STOP’ mode enables faster decommissioning for short periods without the risk of pressure loss.
Based on the standard Ultradryer HRS+ models, the Ultradryer HRS-L+ version of heat regenerated adsorption dryers is designed for processing requirements at tropical and subtropical ambient conditions as well as applications with low pressure dewpoint (-70°C) requirements.
As a standard feature, the Ethernet Communication Interface is ready for Industry 4.0 and connectivity options. Additional optional data communication modules and protocols, along with data links to user networks will expand the scope for even more efficient operation. Another option, the MMC (MultiMediaCard), ensures dryer uptime by providing back-up memory for the original dryer program in case of issues after reprogramming.
“Of course, Donaldson will always be there to provide extensive application support in these circumstances, whether it’s for troubleshooting or helping with sizing before the unit has even been specified,” added Wolfgang. “We can carry out the commissioning, plus handle the maintenance, all thanks to our global presence and regional service organisations. Compressed air is used in almost all industrial processes, and even a 1°C reduction in its temperature is enough for condensation to begin, resulting in expensive damage and a reduction in quality of the end product. If your application calls for very low residual moisture for pressure dew points below 0°C, then you need an adsorption dryer. And if you are looking for reliability, the lowest pressure dew point and the most energy-efficient way of working, our new generation of Ultradryer should be top of your list!”
