Nordic Water’s new DynaBelt filter provides efficiency in a compact footprint

Nordic Water, a Sulzer brand, has launched its new DynaBelt filter to deliver energy efficient primary filtration in a compact package.

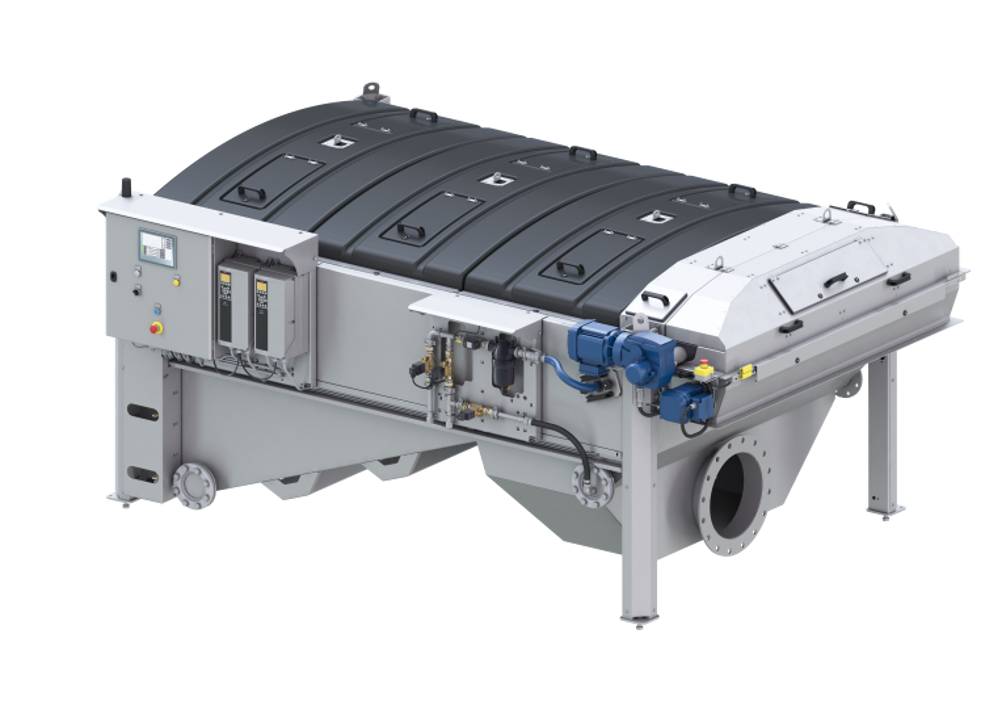

The DynaBelt filter
The DynaBelt filter

Designed for maximum hydraulic flow and occupying just 10% of the space needed for an equivalent sedimentation tank, the DynaBelt offers municipal water treatment works the ability to reliably improve throughput within existing spaces, which is ideal for facilities in built up areas.

A seamless, auto tensioning belt filter is attached to self-cleaning slave and drive rollers and surrounded by the longest emergency overflow weir on the market. As the filter collects suspended solids and head loss occurs, low consumption internal spray bars activate and water is moved to the integrated backwash system. A highly controlled hot water flush also eliminates fat, oil and grease from the filter without the need for chemicals.

The DynaBelt features a unique sludge discharge roller, which rotates at high speed and creates a partial vacuum. This removes the sludge from the belt into a dedicated compartment separate from the backwash reject water to ensure no dilution occurs. The sludge can then be pumped into storage for further processing. Unlike competitor designs that use energy intensive air knives or blowers, this allows the DynaBelt to consume less than 0.6 kW in operation, providing a large energy cost saving and a sizable reduction in carbon footprint.

It also offers a large effective filtration area at 2.7 m2, delivering a 30–50% average reduction in total suspended solids. Three sizes are available to suit different requirements, including pilot schemes, low flow applications or larger systems. DynaBelts can also be arranged in parallel to optimize capacity, enabling larger throughput.

With an integrated human machine interface (HMI) control panel with two variable frequency drives (VFDs), the belt filter can also provide failure validations and notifications to inform maintenance personnel. Operating torque, water consumption, energy usage and head loss detection displays provide ample information daily checks. By specifying the optional 4G antenna, wireless monitoring is also possible, and compatibility is available for a wide range of industrial control systems.

As a Sulzer brand, Nordic Water also offers single source access to a complete range of screening, sedimentation and filtration systems, including sludge pumps and pipework, further simplifying procurement and future maintenance.
