Industrial filters feature integral spring

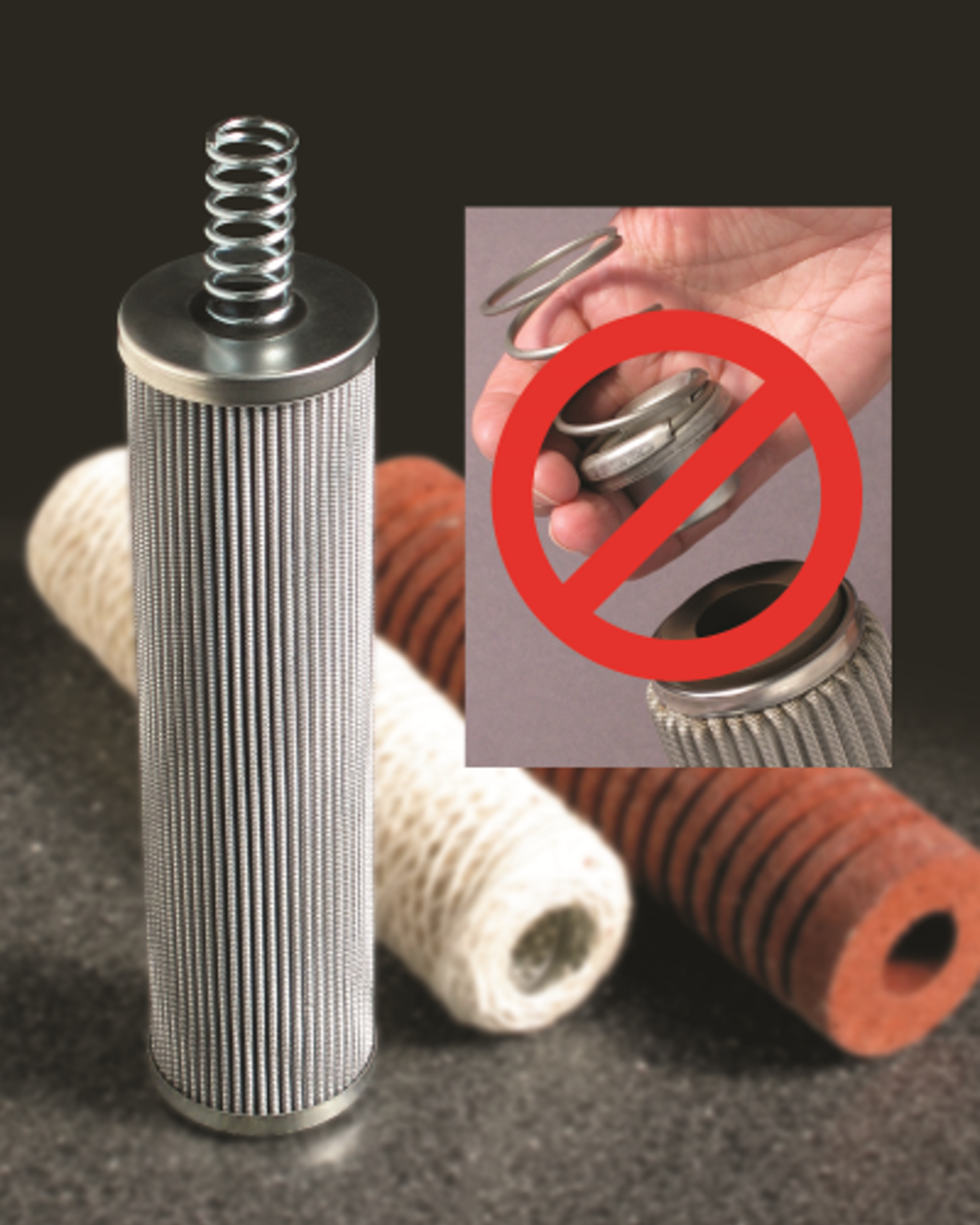

Swift Filters' filter elements incorporate an integral spring, replacing previous spring-and-cup designs that were prone to loss during maintenance.
Swift Filters' filter elements incorporate an integral spring, replacing previous spring-and-cup designs that were prone to loss during maintenance.

SwiftProcess Filter Elements employ microfibre glass media to provide a lower pressure drop and higher dirt loading capacity than traditional string-wound or resin process filter elements. The new spring design eliminates the possibility of cups falling into the filter housing and the nuisance of retrieving them.

SwiftProcess elements are available in the standard industrial format of 2.5 in OD x 1in ID, with lengths from 9.65 in to 39.90 in. They are compatible with petroleum-based fluids, water glycols, polyol esters and phosphate esters (EHC fluids). Filtration rating is Bx = 200 (ISO 4572) Bx (c) = 1000 (ISO 16889).

SwiftProcess filter elements are suitable for power generation applications, as well as other industrial uses.
