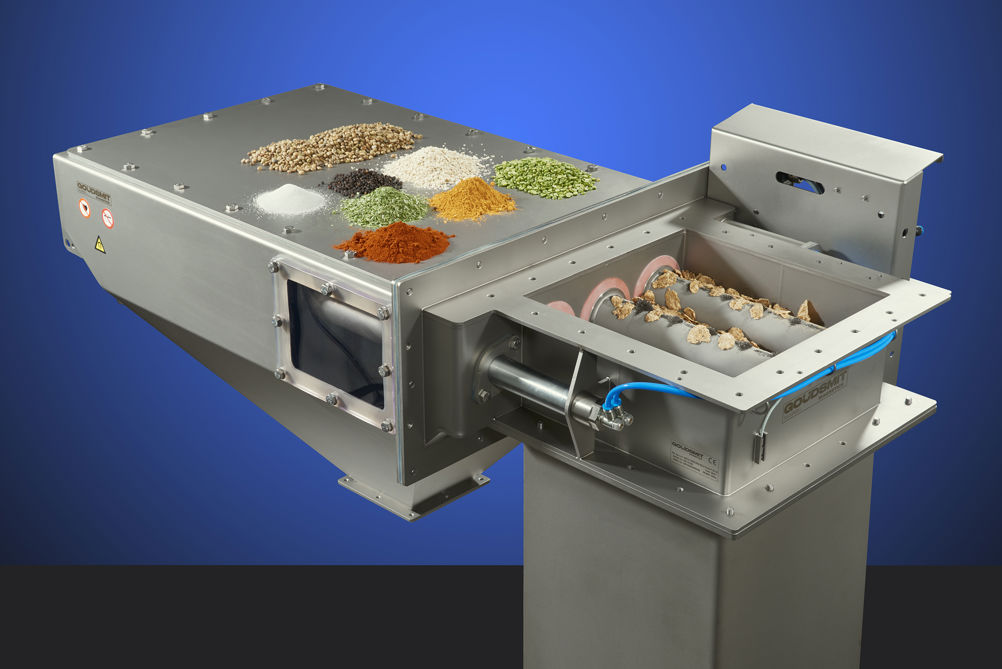

Goudsmit Magnetics’ newly designed Easy Clean flow magnet separator removes metal particles and stainless steel particles from powders as fine as 30 µm in the food, chemical, ceramic and plastic industries.
The modified design has a dustproof outer surface. At the top, a cover plate with gasket ensures that no product can escape. The side of the magnet has a standard terminal box which simplifies the connection of sensors and cables. Both sides are equipped with inspection hatches for maintenance.
The Easy Clean flow magnet is designed for large product flows and has a very high magnetic flux density of over 12,000 gauss at the contact surface of the bars. The bars come into direct contact with the product and have a deeply penetrating magnetic field that effectively makes powders and granulates metal-free at high flow rates. The magnet is dustproof to an overpressure of 0.5 bar and has a simple electro-pneumatic controller.
The thick, Ø50 mm magnetic bars provide a very high separation yield, have a deep holding field and a high flux density.
