The treated water from the Veolia IonPRO LX Mk2 system has conductivity typically less than 0.2 mS/cm, organics less than 500 ppb and a total bacteria count less than 100 cfu/ml. This meets the requirements for pharmaceutical Purified Water and ASTM Type E4 for microelectronics.

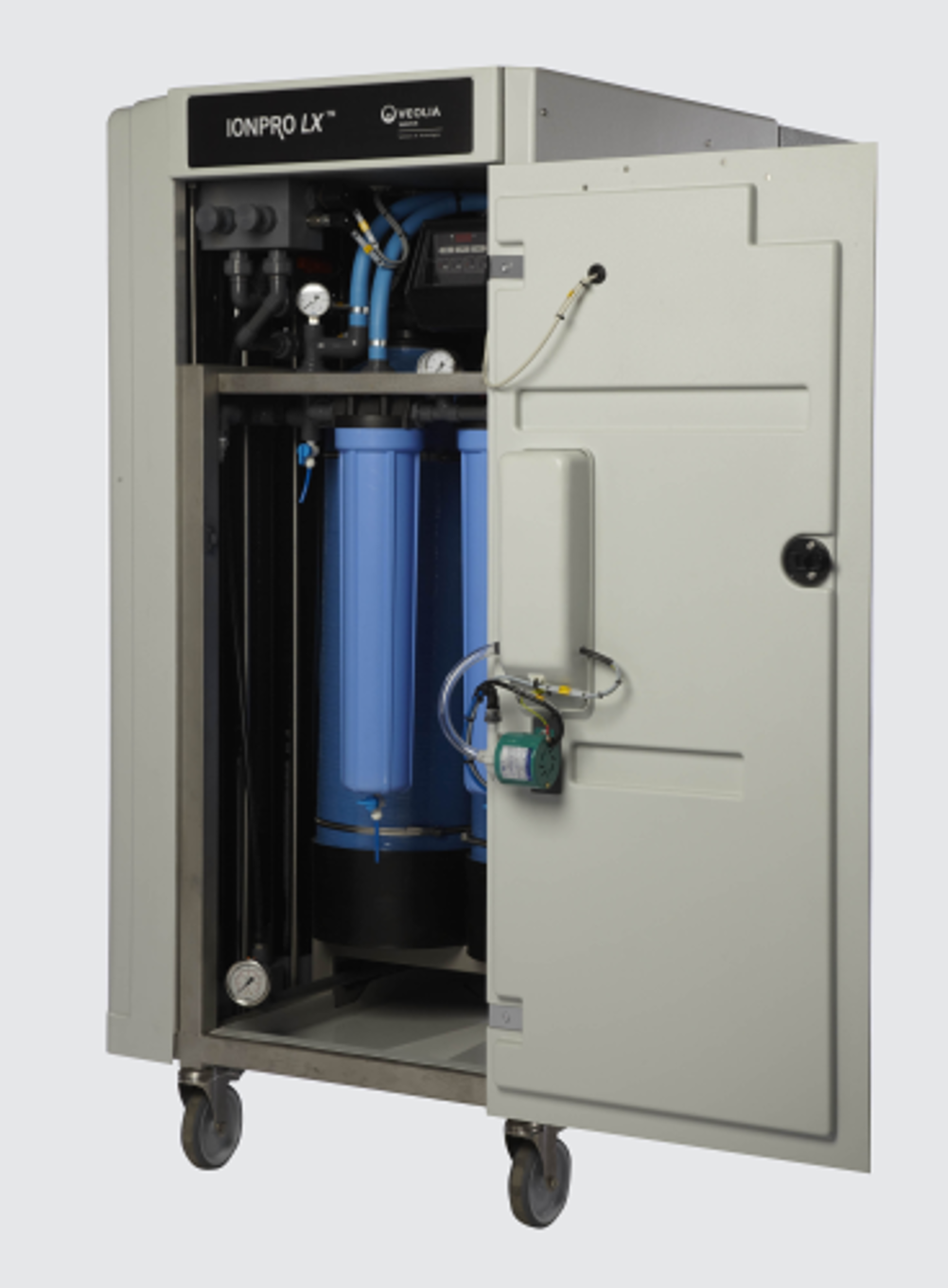

With the smallest footprint in its class, the IonPRO LX Mk2 contains a fully integrated water treatment train of duplex softeners, carbon block or granular carbon cartridge pre filter, a tank and pump, low pressure reverse osmosis modules and 10 or 18 cell pair CEDI stacks. The sanitisation sequence is fully automatic and the cleaning in place procedure is easily carried out by following the prompts on the touch panel display. Both procedures utilise the integral tank for chemical mixing and recirculation. The complete assembly is mounted on a wheeled base for ease of access during maintenance.
There are five models in the IonPRO LX Mk2 range covering flow rates from 500 – 1,000 l/h and all models are factory tested and provided with a full validation pack covering installation qualification (IQ) and operational qualification (OQ). The all new microprocessor controller which features an intuitive HMI - set points are user configurable, protected by I-button security. The controller can be provided with Ethernet or RS232 communications protocols as an optional extra.
